产品展示→
回转支承
→

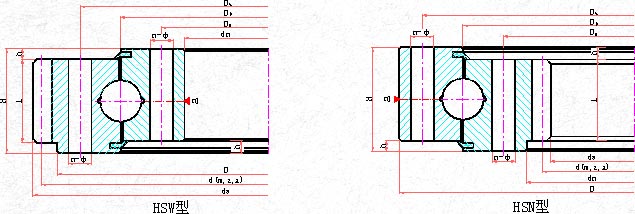

单排四点接触球式回转支承(HS系列) |
|
|
|
|
序号 |
型号 |
外形尺寸 |
安装孔尺寸 |
齿轮参数 |
重量 |
Kg |
D |
dn |
H |
h |
Du |
Dn |
n |
φ |
L |
da |
m |
z |
x |
|
外 |
1 |
HSW880.32 |
1000 |
760 |
95 |
12 |
956 |
800 |
24 |
20 |
70 |
1047.5 |
8 |
127 |
1.15 |
240 |
齿 |
2 |
HSW1020.32 |
1170 |
875 |
95 |
15 |
1120 |
930 |
24 |
22 |
70 |
1219.3 |
8 |
148 |
1.4 |
320 |
式 |
3 |
HSW1220.40 |
1365 |
1075 |
120 |
15 |
1310 |
1130 |
36 |
22 |
90 |
1424.91 |
10 |
138 |
1.4 |
463 |
|
4 |
HSW1250.40 |
1400 |
1090 |
120 |
15 |
1350 |
1150 |
36 |
22 |
90 |
1457.94 |
10 |
142 |
1 |
480 |
|
HSW1250.40A |
90 |
1455.17 |
12 |
118 |
1 |
|
5 |
HSW1435.40 |
1595 |
1278 |
120 |
15 |
1535 |
1335 |
36 |
26 |
90 |
1655.46 |
12 |
134 |
1.15 |
577 |
|
HSW1435.40A |
90 |
1661.17 |
14 |
115 |
1 |
|
6 |
HSW1540.50 |
1720 |
1360 |
140 |
18 |
1660 |
1420 |
42 |
26 |
110 |
1780.8 |
12 |
144 |
1.4 |
864 |
|
HSW1540.50A |
110 |
1791.1 |
14 |
124 |
1.15 |
|
7 |
HSW1700.50 |
1875 |
1525 |
140 |
18 |
1815 |
1585 |
42 |
29 |
110 |
1945.4 |
14 |
135 |
1.15 |
883 |
|
HSW1700.50A |
110 |
1950.8 |
16 |
118 |
1.15 |
内 |
1 |
HSN880.32 |
1000 |
760 |
95 |
12.5 |
956 |
800 |
24 |
20 |
70 |
718.18 |
8 |
91 |
0.35 |
230 |
齿 |
2 |
HSN1020.32 |
1170 |
875 |
95 |
15 |
1120 |
930 |
24 |
22 |
70 |
830.1 |
8 |
105 |
0.35 |
310 |
式 |
3 |
HSN1091.28 |
1200 |
1021 |
90.3 |
14.8 |
1162 |
1048 |
22 |
22 |
74 |
960.55 |
10 |
97 |
0.5 |
214 |
|
40 |
M20 |
|
4 |
HSN1250.40 |
1400 |
1090 |
120 |
15 |
1350 |
1150 |
36 |
22 |
90 |
1037 |
10 |
105 |
0.35 |
470 |
|
HSN1250.40A |
90 |
1029.3 |
12 |
87 |
0.35 |
|
5 |
HSN1435.40 |
1595 |
1278 |
120 |
15 |
1535 |
1335 |
36 |
26 |
90 |
1221.15 |
12 |
103 |
0.35 |
570 |
|
HSN1435.40A |
90 |
1214.32 |
14 |
88 |
0.35 |
|
6 |
HSN1540.50 |
1720 |
1360 |
140 |
18 |
1660 |
1420 |
42 |
26 |
110 |
1293.1 |
12 |
109 |
0.35 |
787 |
|
HSN1540.50A |
110 |
1284.8 |
14 |
93 |
0.35 |
|
7 |
HSN1700.50 |
1875 |
1525 |
140 |
18 |
1815 |
1585 |
42 |
29 |
110 |
1452.66 |
14 |
105 |
0.35 |
872 |
|
HSN1700.50A |
110 |
1452.33 |
16 |
92 |
0.35 |
|
|
|
|
