Model /Dimensions Parameters：
|
Model |

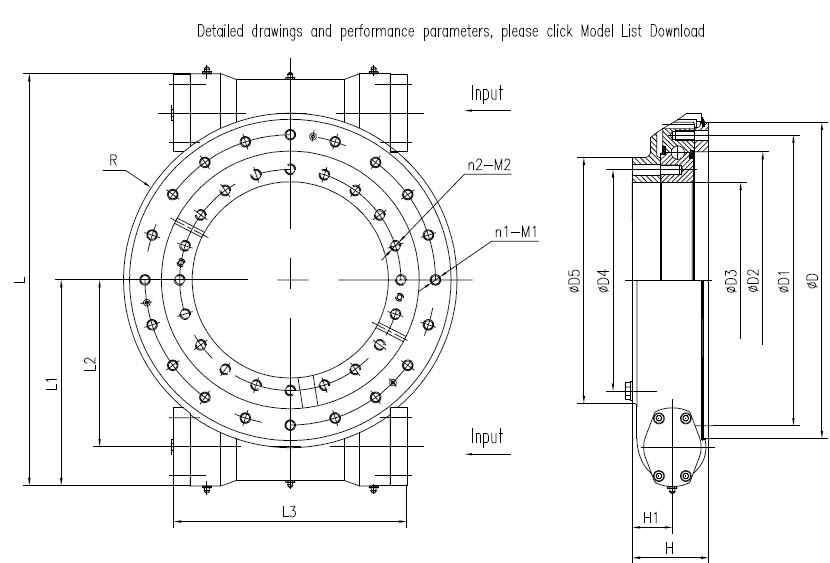

External Dimensions（mm） |
Installation Dimensions （mm） |
Mounting Holes Date |
|
L |
L1 |
L2 |
L3 |
R |
H |
H1 |
D |
D1 |
D2 |
D3 |
D4 |
D5 |
n1 |
M1 |
n2 |
M2 |
|
SE14-85-2 |
605.5 |
303 |
237.6 |
337.5 |
228 |
111 |
59 |
453 |
390 |
342.5 |
265 |
295 |
325 |
18 |
M16 |
24-1 |
M16 |
|
SE17-102-2 |
680.6 |
340 |
280.4 |
385 |
275 |
126 |
66 |
522 |
479.4 |
425 |
324 |
365.1 |
406 |
20 |
M16 |
20 |
M16 |
|
SE21-125-2 |
796.7 |
417.5 <, /TD>
|
345 |
475 |
334 |
140 |
73 |
621 |
584.2 |
|
435 |
466.7 |
533 |
36 |
M20 |
36-1 |
M20 |
|
SE25-150-2 |
933.7 |
467 |
401.8 |
469 |
396 |
130 |
76.2 |
744 |
675 |
|
512 |
565 |
628 |
36 |
M20 |
36-1 |
M20 |
Remark:
1. For more details, please download the drawing with datasheet.
2. Different Electrical motor and hydraulic motors are available.
3. Special product can be customized.
4. Any questions please mail or phone us anytime.
|
